PTFE Insulated Cable


PTFE Insulated Cable

We are one of the trusted PTFE Cables Manufacturers in Bangalore. PTFE Insulated Cable has uniform thickness around the central conductor. This cable features low dielectric constant and high operating temperature. PTFE Insulated Wire is also known for its excellent thermal stability and high surface resistance. This cable is resistant to flames and has high mechanical strength. It finds application in electronic equipment for aircraft, marine, radar & satellites, atomic power stations, furnace & oven wiring, high temperature exchanges, heat sensing leads, aerospace research, lifts, refrigeration equipment and many more. The dielectric strength and volume resistivity of this cable remain impervious by thermal aging. It is also suitable for wide frequency range, that is, DC to above 10000 MHZ.



Finds Application in

  • Electronic Equipment For Aircraft, Marine, Radar, atellites
  • Aerospace Research
  • Lead Cells & Pressure Transducers
  • Atomic Power Stations
  • High Performance Electrical Machines
  • Furnace & Oven Wiring
  • High Temperature Exchanges
  • Heat Sensing Leads
  • Aerospace Research
  • Lifts
  • Refrigeration Equipment
  • High Performance Electrical Machines



Product Range

  • Hook-up Wires
  • RR Co-Axial Cables
  • Tri-Axial Cables
  • Multi Core Twisted Cables
  • Twisted & Shielded Cables
  • Twisted Shielded & PTFE /PVC Jacketed Cables
  • Double Shielded Cables
  • Multi Pair Cables
  • Twin Parallel Balloon Wire
  • Sleeves
  • PTFE Tape
  • PTFE Hoses



Operating Temperatures

  • PTFE Insulated Silver Plated Copper Wires - 650 to 2650
  • PTFE Insulated Nickel Plated Copper Wires - 650C to 2000C



Running Voltage

  • TYPE ET : 250 VOLTS AC RMS
  • TYPE E : 600 VOLTS AC RMS
  • TYPE EE : 1000 VOLTS AC RMS



General Charactersitics

  • Low Dielectric Constant
  • Low Dissipation Factor (
  • High Operating Temperatures
  • Excellent Thermal Stability
  • Suitable For Wide Frequency Range: DC to Above 10000 MHZ
  • High Surface Resistance
  • Inert to Chemical Attack
  • High Volume Resistance
  • Flame Proof
  • High Mechanical Strength
  • Fair Corona Resistance
  • Suitable to High Density Wiring
  • Inert to Fungus and Mould Growth

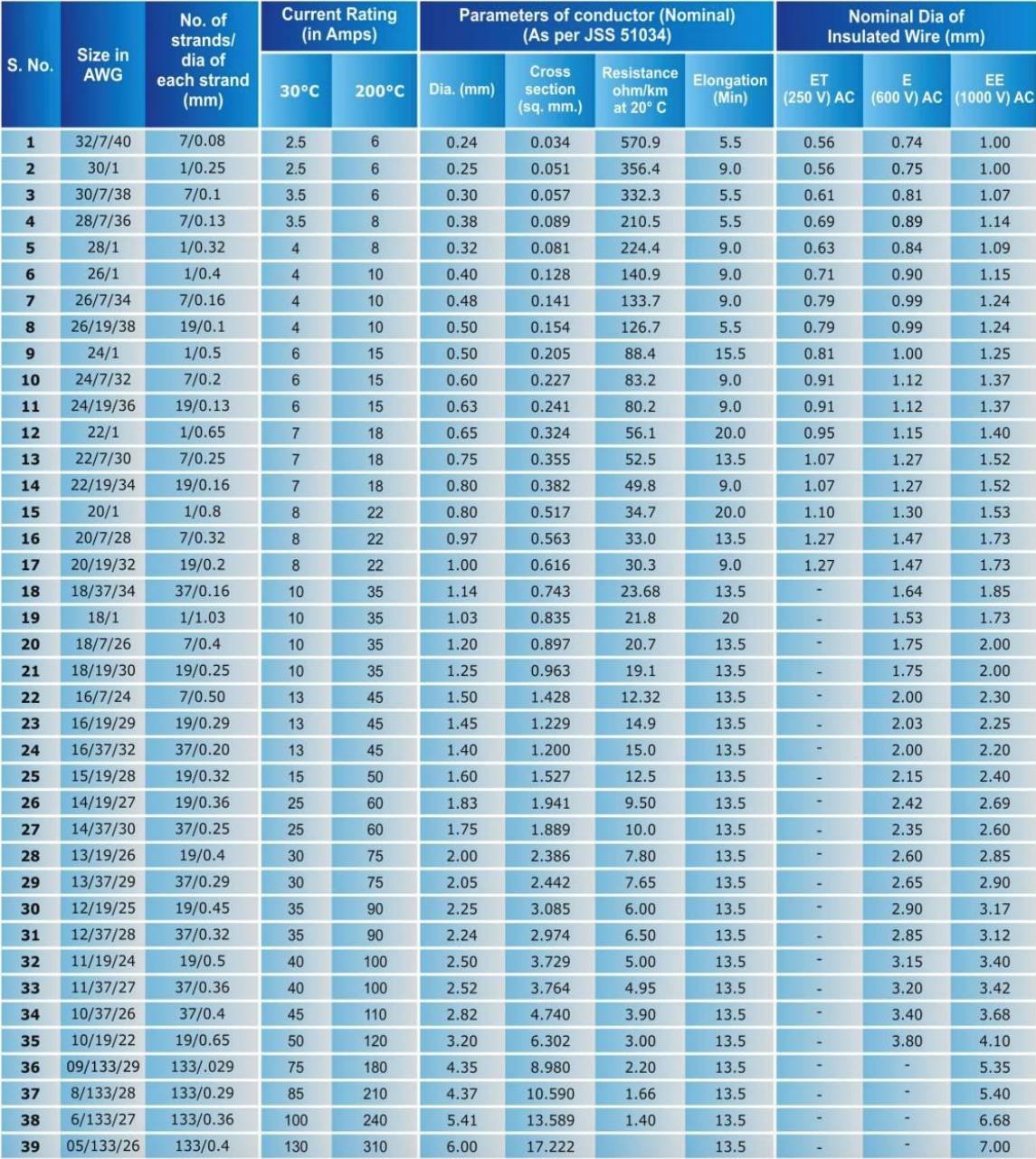

View More Technical Specifications
