Instrumentation Cables
Leading Manufacturers, Exporters and Wholesaler of Shielded Instrumentation Cable and Twisted Pair Cable from Bangalore.
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Data Acquisition & Control Systems,Computer Networking & PA Systems,Digital Control,Measuring & Communication Systems,Signal Transmission In Noise-Prone Environments |
| Insulation Material | PVC-HR |
| Conductor Material | Copper (Tinned) |
| Type | Shielded Instrumentation Cable |
| Conductor Construction | Stranded |
| Core Configuration | Multi Core |
| Shielding Type | Aluminum Foil With Copper Drain Wire (ATC) |
| Inner Sheath | PVC-HR |
| Armouring | Galvanized Steel Wire |
| Outer Sheath | PVC-HR |
| Standard Compliance | BS 5308, IEC 189, IS 1554, VDE 0815 |
Shielded Instrumentation Cables are specially designed for accurate and interference-free transmission of low-level electrical signals. These cables use aluminum foil shielding with a copper drain wire (ATC) to provide excellent protection against electromagnetic and radio frequency interference.
Manufactured in conductor sizes ranging from 0.25 sq.mm to 4.0 sq.mm, these cables conform to BS 5308 (Part I & II), IEC 189, IS 1554 (Part 1):1988, and VDE 0815 standards.
Available from single core / single pair up to 100 cores or 50 pairs, they are widely used in critical control, measurement, and communication systems where signal integrity is essential.
Applications
-
Data Acquisition & Control Systems
-
Computer Networking & PA Systems
-
Digital Control, Measuring & Communication Systems
-
Signal Transmission in Noise-Prone Environments
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Telephone Communication Lines, Ethernet & LAN Networks, Digital Subscriber Lines (DSL), CCTV Systems, Industrial Communication Systems, Data & Signal Transmission |
| Conductor Material | Copper |
| Type | Twisted Pair Data Cable |
| Pair Construction | Twisted Pair |
| Shielding Type | Shielded / Unshielded |
| Noise Immunity | High (Twisted Pair Design) |
| Compatibility | RS485 / MODBUS / Ethernet |
| Installation | Indoor & Structured Cabling |
| Signal Integrity | Excellent |
| Standard Compliance | Industry Standards |
Twisted Pair Cables are data communication cables in which a circuit is formed by twisting two insulated conductors together. This twisting significantly reduces electromagnetic interference (EMI) and crosstalk from adjacent pairs, ensuring stable and reliable signal transmission.
These cables are widely used in modern Ethernet networks, telephone communication, and industrial data systems. Special RS485 twisted pair cables are designed to minimize noise by balancing magnetic fields around signal lines. MODBUS shielded twisted pair cables are commonly used for serial communication between electronic devices.
Types of Twisted Pair Cables
-

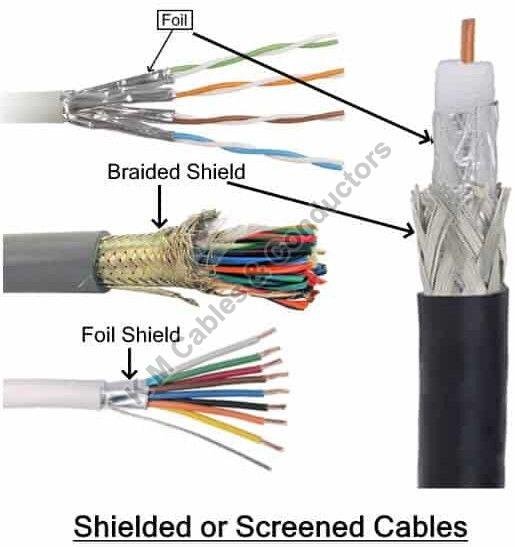

Shielded Twisted Pair (STP)
-

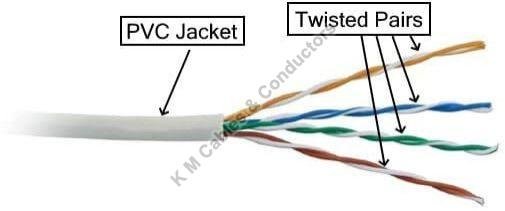

Unshielded Twisted Pair (UTP)
-
SLP Cable
Applications of Twisted Pair Cable
-
Telephone Communication Lines
-
Ethernet & LAN Networks
-
Digital Subscriber Lines (DSL)
-
CCTV Systems
-
Industrial Communication Systems
