Overhead Conductors

ACSR / Covered Conductors are widely used for overhead power transmission and distribution systems. These conductors are designed to deliver high mechanical strength, excellent electrical conductivity, and long service life.

KM Cables & Conductors manufacture a complete range of AAC, ACSR, AAAC, AACSR, ACASR and other special conductors as per IS:398 (Part 1 & Part 2) and customer-specific requirements.

Approved by all Electricity Boards, these conductors are suitable for 33kV / 11kV / 1.1kV systems and can be supplied as bare or covered conductors for enhanced safety and reliability.

Product Range

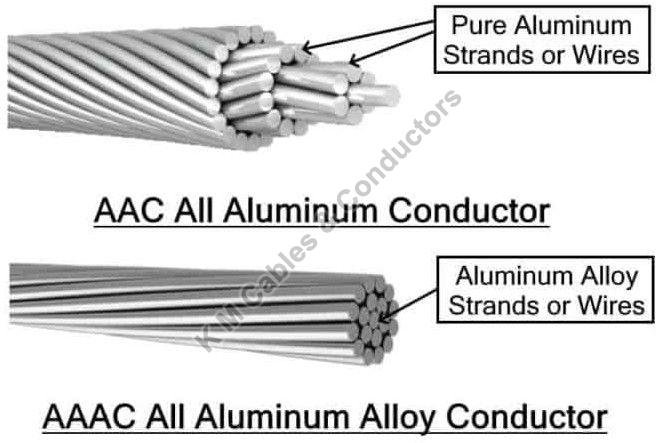

• AAC (All Aluminium Conductor)

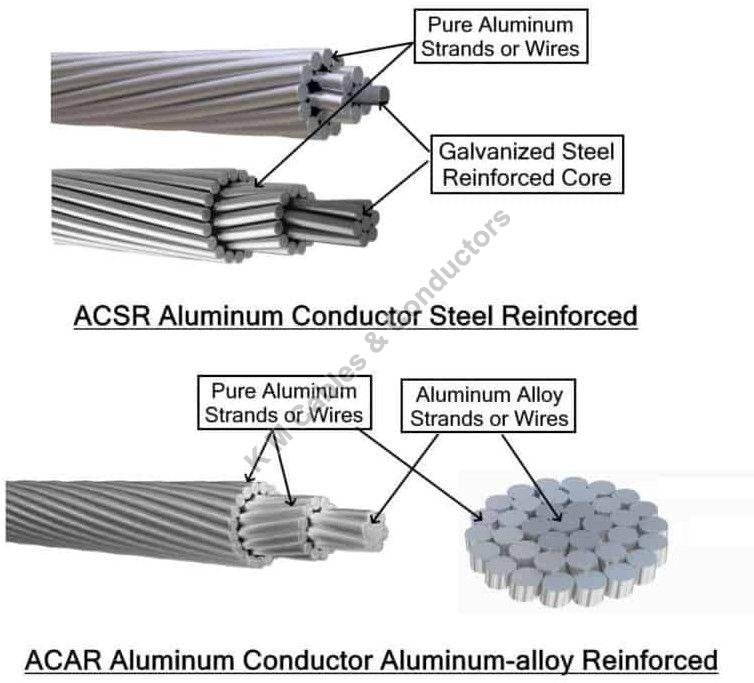

• ACSR (Aluminium Conductor Steel Reinforced)

• AAAC (All Aluminium Alloy Conductor)

• AACSR (Aluminium Alloy Conductor Steel Reinforced)

• ACASR (Aluminium Conductor Aluminized Steel Reinforced)

• Covered Conductors (as per requirement)

Applications

• Overhead power transmission lines

• Primary & secondary power distribution

• Urban, rural & industrial electrification projects

Special Features

• IS:398 (Part 1) Certified

• IS:398 (Part 2) Certified

• Approved by all Electricity Boards

• High strength-to-weight ratio

• Excellent sag performance & corrosion resistance

Aerial Bunched Cable (ABC) is an advanced and reliable solution for overhead power distribution, designed as a safer alternative to conventional bare conductor systems. These cables are designed, manufactured, and tested in accordance with IS:14255 and relevant international standards.

ABC systems offer enhanced safety, reduced power losses, and overall cost efficiency by minimizing installation, operation, and maintenance expenses. They are especially suitable for rural electrification, theft-prone areas, congested urban locations, and difficult terrains such as hilly, forest, and coastal regions.

Available in 1.1kV & 11kV (E) XLPE insulated variants, ABC cables are ideal for both LT and HT power distribution networks.

•


  LT XLPE Aerial Bunched Cable





•


  HT XLPE Aerial Bunched Cable




•


  Power distribution in theft-prone areas





•


  Replacement of bare overhead lines in rural & narrow street areas





•


  Hilly terrains where underground cabling is costly





•


  Urban areas with space constraints





•


  Temporary power supply systems





•


  Reinforcement of existing networks without voltage upgrade




•


  High safety due to fully insulated conductors





•


  Low fault rate against wind, trees, and bird contact





•


  High insulation resistance with minimal leakage current





•


  Reduced voltage drop and improved voltage regulation





•


  Difficult to tap, reducing power theft





•


  Easy maintenance and long service life




Aerial Bunched Cable (ABC) is an advanced solution for overhead power distribution, developed as a safer and more reliable alternative to conventional bare conductor systems. These cables are designed, manufactured, and tested in accordance with IS:14255 and other international standards.

ABC cables provide enhanced safety, reduced power losses, and overall system economy by lowering installation, maintenance, and operating costs. They are ideally suited for rural electrification, theft-prone areas, and challenging terrains such as hilly, forest, and coastal regions.

Due to their compact and insulated design, ABC cables are also highly suitable for congested urban areas with narrow streets and for developing urban complexes where flexibility and re-routing are required.
Available in 1.1kV & 11kV (E) XLPE insulated variants for LT and HT distribution networks.

Available Types

• LT XLPE Aerial Bunched Cable

• HT XLPE Aerial Bunched Cable

Applications

• Power distribution in theft-prone areas

• Replacement of bare lines in rural & narrow street locations

• Areas where high reliability and voltage stability are required

• Hilly terrains where underground cabling is costly

• Reinforcement of existing networks without increasing voltage

• Temporary power supply systems

Advantages

• High safety due to fully insulated conductors

• Low fault rate against wind, trees, birds & environmental hazards

• High insulation resistance with negligible leakage current

• Lower voltage drop and improved voltage regulation

• Difficult to tap, reducing power theft

• Easy maintenance and reduced overall line cost
