100 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Insulation Material | PVC / FR / FRLS (optional) |
| Conductor Material | Electrolytic Grade Annealed Copper |
| Type | Multicore Flexible Cable |
| Click to view more | |
Product Details
Multicore Flexible Cables consist of multiple insulated conductors wrapped together in a single outer jacket, helping avoid tangled wiring by replacing multiple individual wires with one organized cable. These cables are ideal where flexibility, compact wiring, and signal integrity are required.
Conductors are made from electrolytic grade annealed copper, bunched as per Class 5 of IS 8130:2013. Manufactured in compliance with IS 694:2010, cables are available from 0.25 sq.mm to 400 sq.mm.
Note: A single 3-phase cable is not a multicore cable; cables containing two or more separate 3-phase conductors are classified as multicore cables.
Types of Multicore Flexible Cables
-
Shielded Multicore Cable
-
Braided Shield Cable
-
Foil Shield Cable
-
-

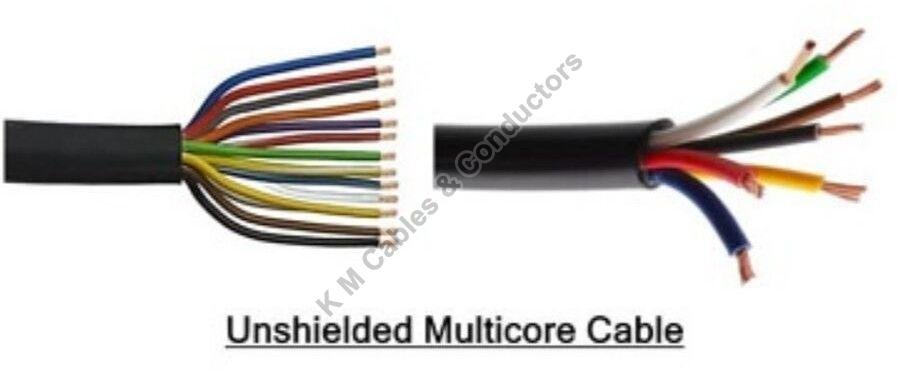

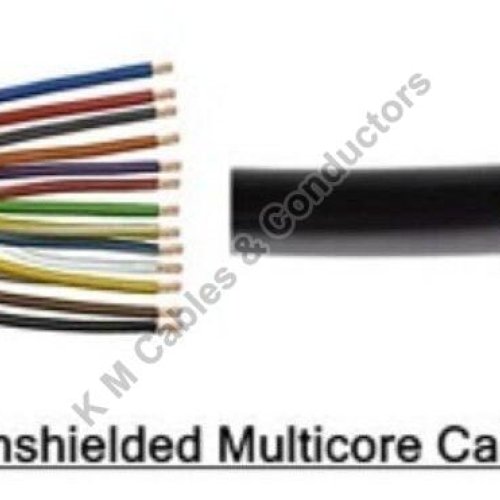

Unshielded Multicore Cable
Technical Data
| PVC insulated Bare copper conductor 600v / 1000v sheated Multicore Felixble cables | ||||||||||||
| Nominal Area (Sq. mm.) | Insulation Thickness (mm) | Core Diameter (mm) | Max. DC Resistance Ohm/Km at 20°c | Sheat Thickness (mm) | Approx Overall Diameter (mm) | Current Rating (Amps) | ||||||
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | ||||
| 0.5 | 0.6 | 2.2 | 39 | 0.9 | 0.9 | 0.9 | 6.08 | 6.41 | 6.96 | 4 | 3 | 3 |
| 0.75 | 0.6 | 2.4 | 26 | 0.9 | 0.9 | 0.9 | 6.44 | 6.8 | 7.39 | 7 | 6 | 6 |
| 1 | 0.6 | 2.6 | 19.5 | 0.9 | 0.9 | 0.9 | 6.78 | 7.17 | 7.8 | 12 | 10 | 10 |
| 1.5 | 0.6 | 2.8 | 13.3 | 0.9 | 0.9 | 1 | 7.22 | 7.65 | 8.34 | 16 | 14 | 14 |
| 2.5 | 0.7 | 3.5 | 7.98 | 1 | 1 | 1 | 8.64 | 9.16 | 10.01 | 20 | 18 | 18 |
| 4 | 0.8 | 4.3 | 4.95 | 1 | 1 | 1 | 10.08 | 10.94 | 11.98 | 27 | 24 | 24 |
Technical Data
| PVC insulated Plain copper conductor 600v / 1000v sheated Multicore Felixble cables | ||||||||||||
| Nominal Area (Sq. mm.) | Insulation Thickness (mm) | Core Diameter (mm) | Max. DC Resistance Ohm/Km at 20°c | Sheat Thickness (mm) | Approx Overall Diameter (mm) | Current Rating (Amps) | ||||||
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | ||||
| 6 | 0.8 | 4.8 | 3.3 | 1.1 | 1.2 | 1.2 | 11.36 | 12.28 | 13.46 | 34 | 30 | 30 |
| 10 | 1 | 6.3 | 1.91 | 1.3 | 1.4 | 1.4 | 14.5 | 15.66 | 17.28 | 44 | 39 | 39 |
| 16 | 1 | 7.3 | 1.21 | 1.4 | 1.4 | 1.4 | 16.94 | 18.06 | 19.88 | 61 | 55 | 55 |
| 25 | 1.2 | 9.1 | 0.78 | 1.4 | 1.5 | 1.6 | 20.48 | 22.1 | 24.58 | 69 | 60 | 60 |
| 35 | 1.2 | 10.1 | 0.55 | 1.6 | 1.6 | 1.7 | 22.7 | 24.85 | 26.98 | 88 | 77 | 77 |
| 50 | 1.4 | 11.9 | 0.39 | 2 | 2 | 2 | 27.04 | 28.89 | 31.86 | 116 | 102 | 102 |
| 70 | 1.4 | 13.9 | 0.27 | 2.2 | 2.2 | 2.2 | 31.48 | 33.65 | 37.15 | 155 | 140 | 140 |
| 95 | 1.6 | 16.3 | 0.21 | 2.4 | 2.4 | 2.4 | 35.94 | 38.43 | 42.45 | 190 | 165 | 165 |
